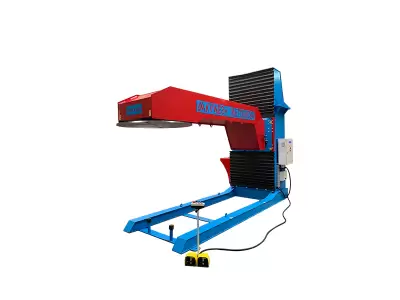

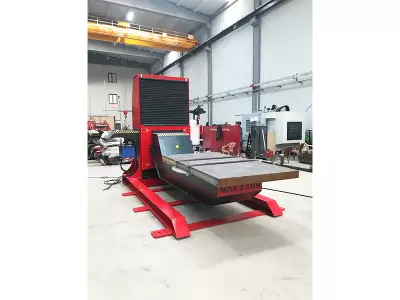

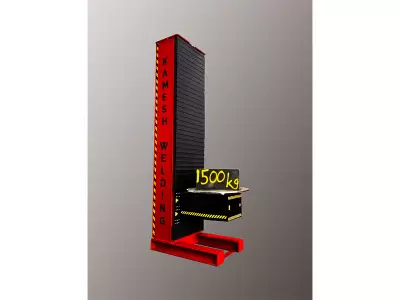

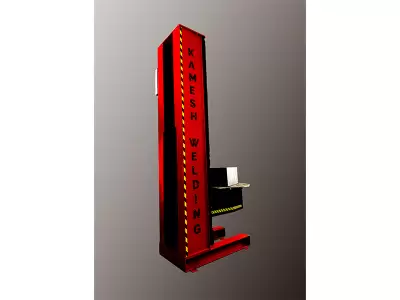

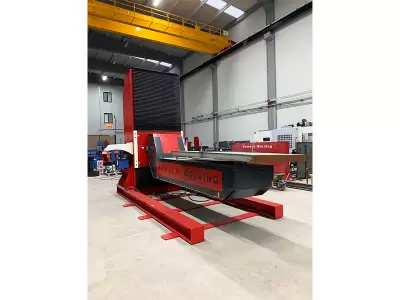

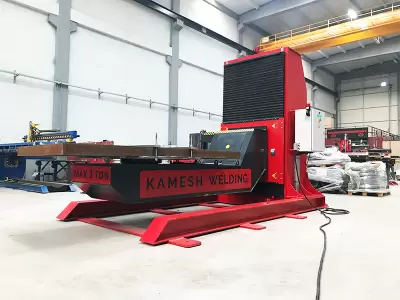

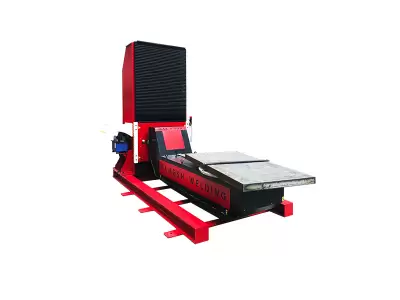

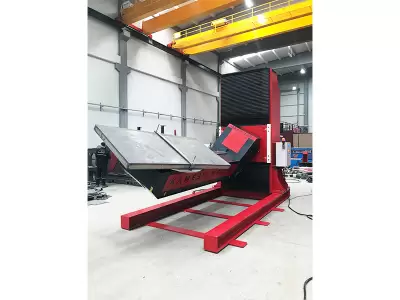

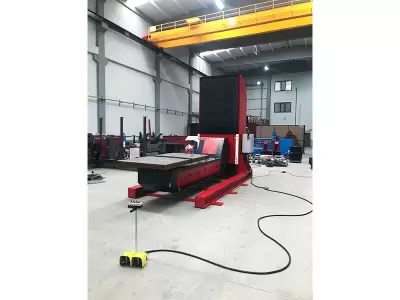

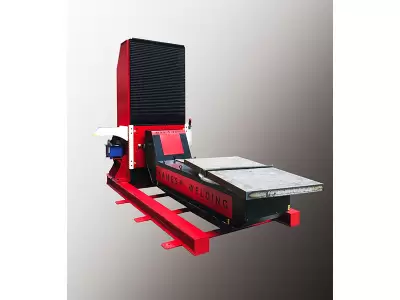

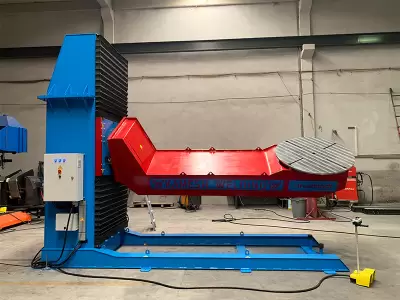

3 Axis L Type Positioner
Our 3 Axis machine are at our clients service with capacities of 1, 3 and 5 tons. With its downwards, upwards movement, its boom mobility and platform rotation movements, it provides ease of use for the welding operators. The machine is designed for the positioning and welding materials such as mobile crane booms, cabins, heavy duty parts etc. the actions are commanded by a wired remote as the parts can be fixed to the platform in ease via the T grooves, bored on the platform. This is an automation equipment that enable the welding works done rapidly with high quality.
-
Features
-
Technical Specifications
-
Videos
-
Frequently Asked Questions
-
Contact Us
Our 3 Axis machine are at our clients service with capacities of 1, 3 and 5 tons. With its downwards, upwards movement, its boom mobility and platform rotation movements, it provides ease of use for the welding operators. The machine is designed for the positioning and welding materials such as mobile crane booms, cabins, heavy duty parts etc. the actions are commanded by a wired remote as the parts can be fixed to the platform in ease via the T grooves, bored on the platform. This is an automation equipment that enable the welding works done rapidly with high quality.
Technical Specifications
| KWLPOZ1000 | KWLPOZ3000 | KWLPOZ5000 |
|---|---|---|
| Rated Load Capacity (KG) | 1000 | 3000 |
| Max. Workpiece Diameter (MM) | 1500 | 1500 |
| Table Diameter (MM) | 1150 | 1250 |
| Table Rotation Method | Hydraulic | Hydraulic |
| Crank Rotation Method | Hydraulic | Hydraulic |
| Table Rotation Speed (RPM) | 0,15-1,5 | 0,1-1 |
| Dimension (MM) | 2500x2850x1000 | 2500x3000x1200 |
| Weight (Kg) | 2550 | 3600 |
| Color | Red -Grey | Red -Grey |
What is a circular welding machine?
A circular welding machine is an industrial welding system that performs circumferential welding of cylindrical and round workpieces automatically, in a controlled and repeatable way. The machine basically consists of a frame, a rotating spindle box, a beam, a pneumatic tailstock, a torch lifting mechanism, a torch adjustment system and an automatic welding control unit.
