Chain Type Rotators

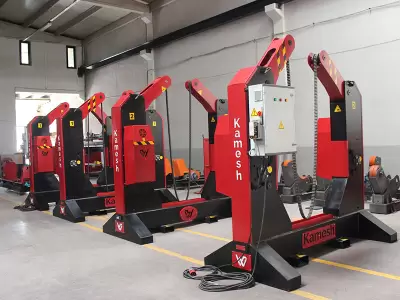

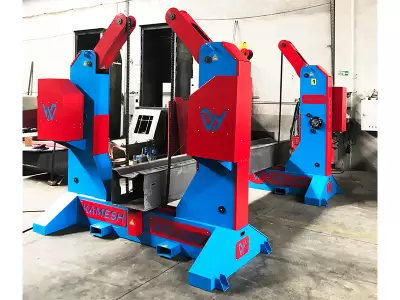

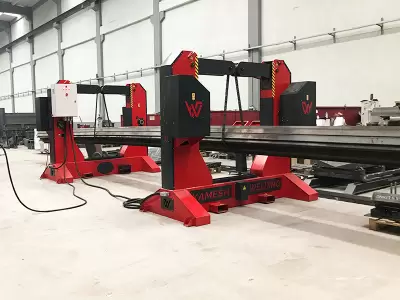

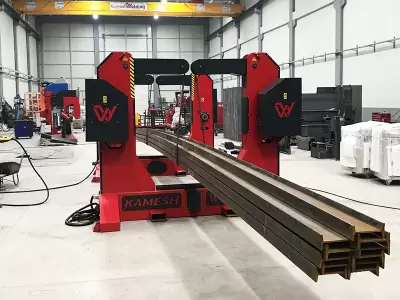

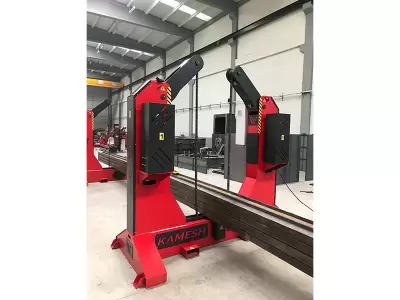

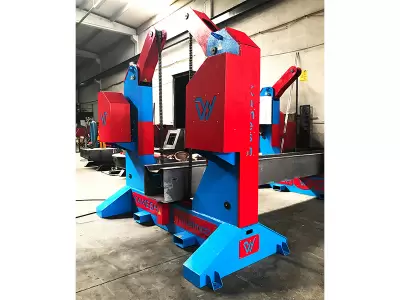

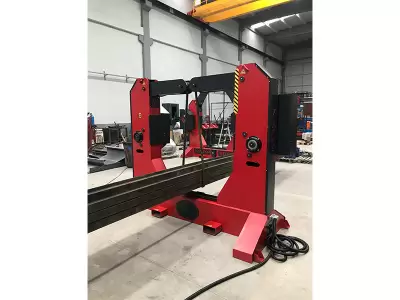

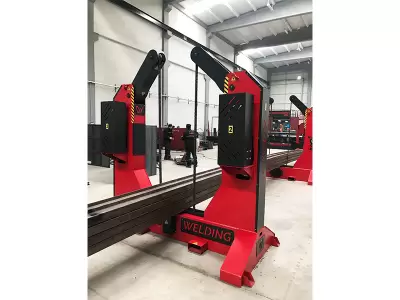

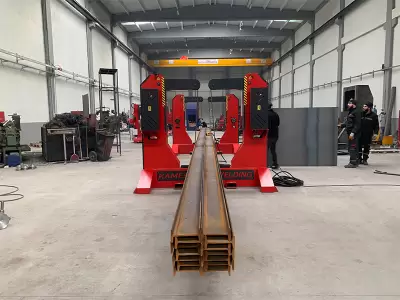

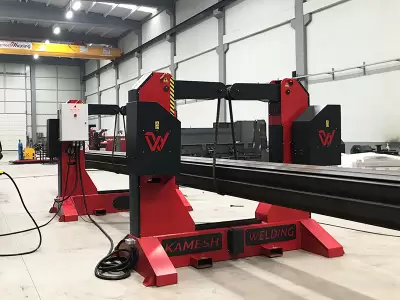

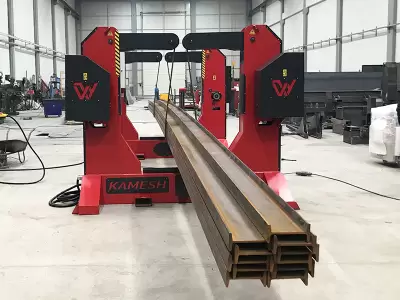

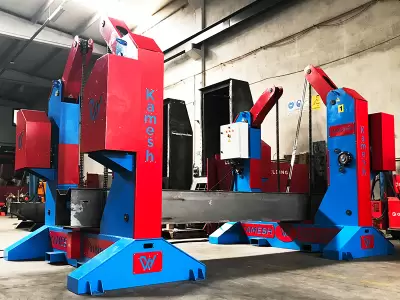

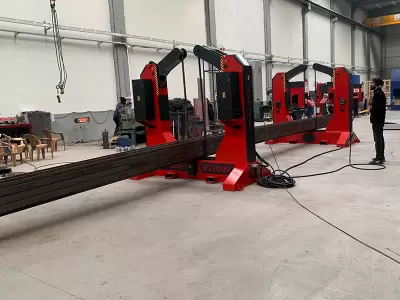

Kamesh Welding Chain Type Rotator Line enables the welding of the planar parts that are frequently made in the production of steel constructions such as H and I profile as well as the overhead crane beams by placing them into the appropriate welding position. In such systems, which significantly decrease the use of the cranes, the materials are lined up within the groove position to render their welding speeds increase. The rotators, with which both units are chain driven, synchronize with each other and thus optimum rotation ability is achieved.
Technical Specification
| Tecnical Details | KWZCS1000 | KWZCS3000 | KWZCS5000 | KWZCS10000 | ||
| Load Capacity (KG) | 1000 | 3000 | 5000 | 10000 | ||
| Rotating Capacity (MM) | 900X900 | 1000x1000 | 1100x1100 | 1200x1200 | ||
| Distance Between The Rolls (MM) | 1200 | 1200 | 1500 | 1700 | ||
| Rotation Speed (M/DK) | 2,5 | 2,5 | 2,5 | 2,5 | ||
| Rotation Motor (KW) | 4 x 0,37 | 4 X 0,75 | 4 X 1.1 | 4 X 2.2 | ||
| İnput Power | 380 V -50 HZ | 380 V -50 HZ | 380 V -50 HZ | 380 V -50 HZ | ||
| Lenght (MM) | 2500 | 2250 | 2500 | 2750 | ||
| Widht (MM) | 1000 | 1250 | 1250 | 1400 | ||
| Weight (KG) | 1700 | 2100 | 2250 | 2750 | ||
| Color | Red-Grey | Red-Grey | Red-Grey | Red-Grey | ||
