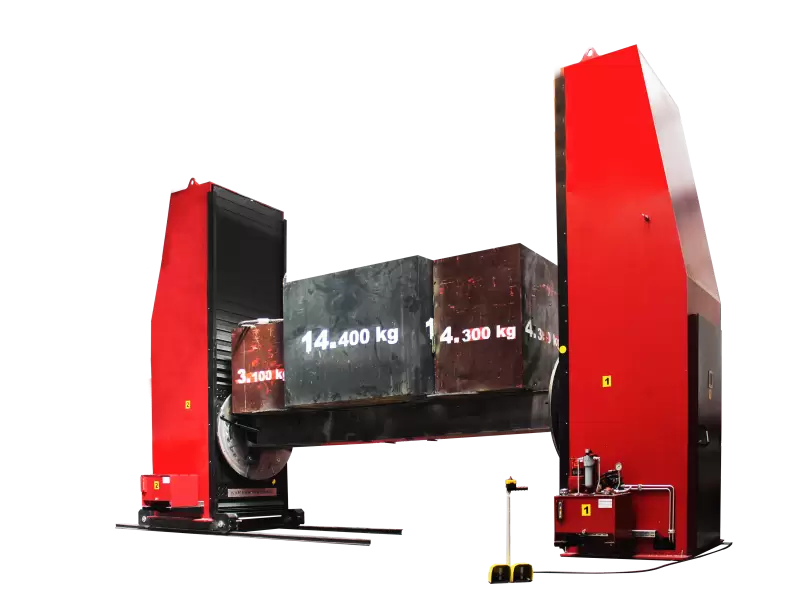

The Kamesh Welding Frame Positioner is designed for the purpose of being the final welding in the manufacturing of the different types of frames. This welding positioned is comprised of two heads, one of which has a rotating mechanism for the frame that is prepared for the final welding and the other one has a trailing rotation system. The main chassis is comprised of the extrusion and assembly platform for Truck Frames, the hydraulic system and the lifter systems. This lifting system is used for rotating the chassis that is prepared for the final welding for 360 degrees. This system enables a faster and safer work.
| Technical Specifications | KWSP01 | KWSP03 | KWSP05 | KWSP10 |
|---|---|---|---|---|
| Loading Capacity (kg) | 1000 | 3000 | 5000 | 12000 |
| Rotating Capacity | 1000 | 3000 | 5000 | 12000 |
| Table Diameter (mm) | 800 | 1000 | 1100 | 1150 |
| Machine Height (mm) | 1900 | 2200 | 3000 | 4300 |
| Vertical Stroke (mm) | 700 | 900 | 1200 | 1500 |
| Motor Rotary Speed (rpm) | 1,1 | 1 | 1 | 0,7 |
| Input Power | 380 V-50 Hz | 380 V-50 Hz | 380 V-50 Hz | 380 V-50 Hz |
| Machine Length (mm) | 1200 | 1400 | 1500 | 1900 |
| Machine Width (mm) | 850 | 1100 | 1300 | 1600 |
| Machine Weight (kg) | 1300 | 1500 | 1700 | 2300 |
| Color | Red - Black | Red - Black | Red - Black | Red - Black |
