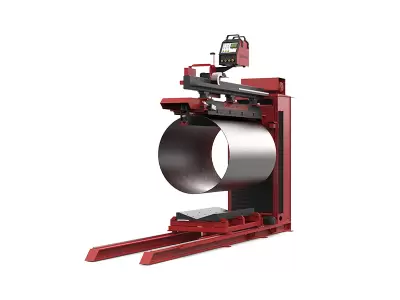

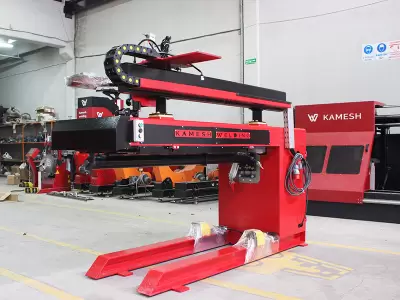

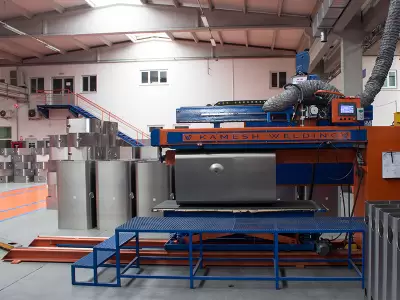

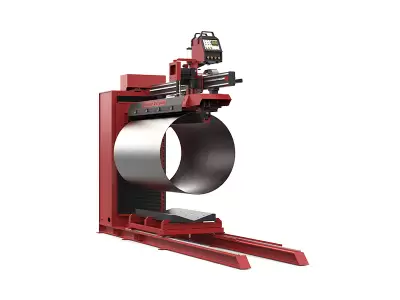

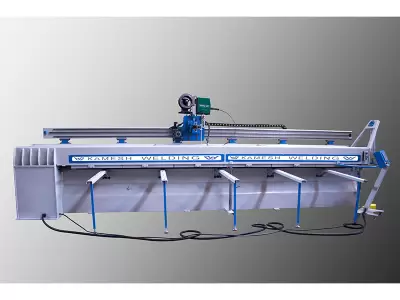

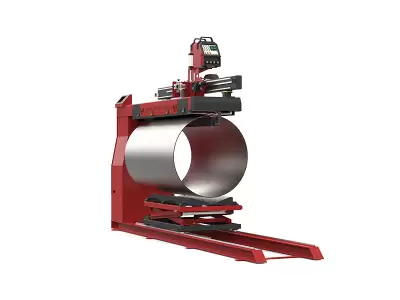

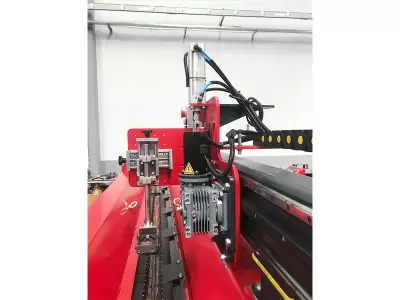

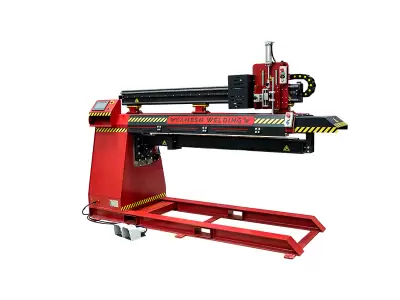

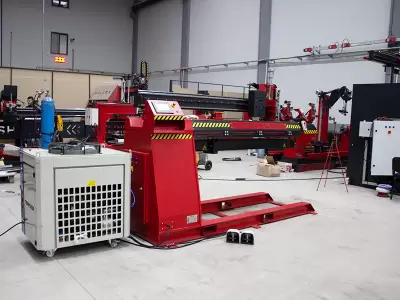

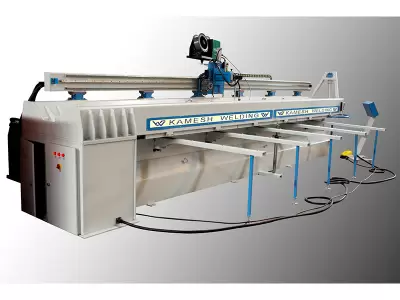

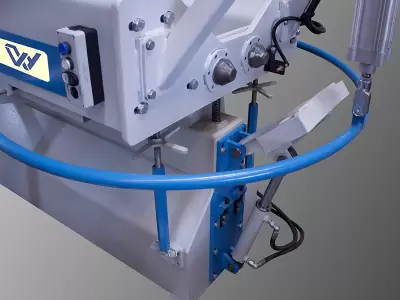

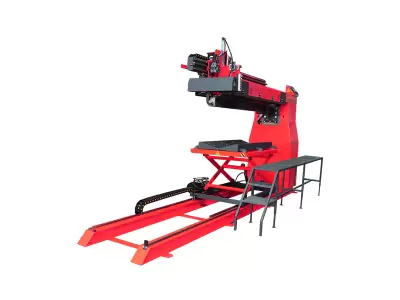

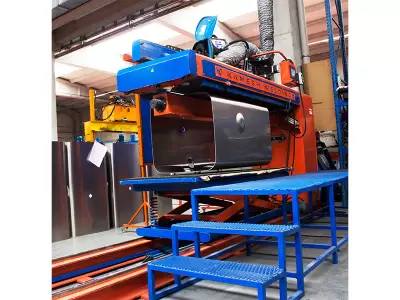

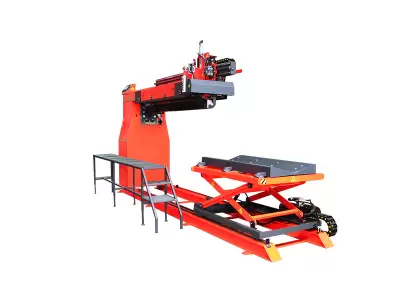

Linear Welding Machine

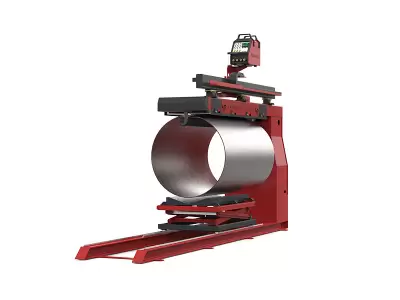

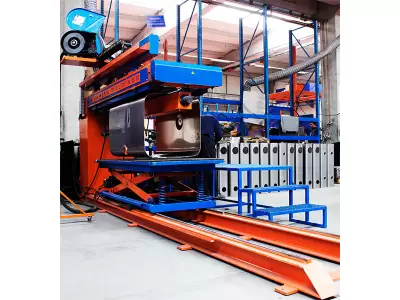

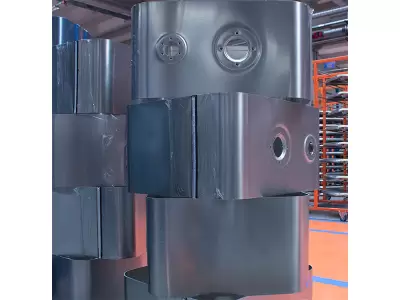

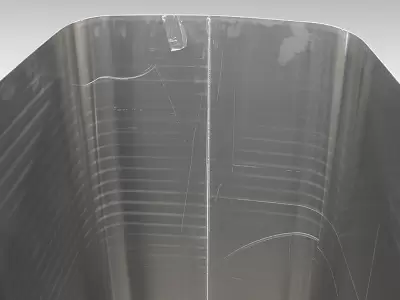

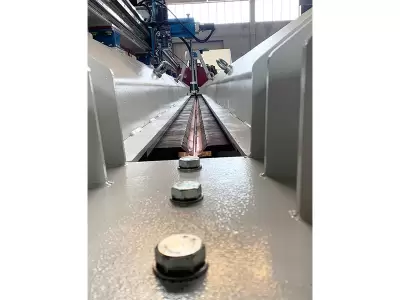

Linear Welding Machine is designed to provide Linear Welding for parts that are bent in the forms of cylindrical, conical and rectangular as well as the sheet metals in the form of plates. Parts with the diameter of 100 – 3000 mm can easily be welded on different machine types. Machine with internal and external welding feature is manufactured with lengths ranging from 1 meter to 4 meters. For certain special conditions the machine length may increase as well. Right now the parts with maximum thickness of 0,60 mm can be welded. The thickness may go up to 20-25mm for the submerged welding applications. The longidutinal welding of the material and items such as the boilers, bath heaters, solar energy boilers, cooling tanks, natural gas chimneys, LPG tanks etc are mode on this machine. The welding systems such as submerged, gas metal and TIG work in sync with our machine.
Technical Specification
| Technical Details | KWBKM-1000 | KWBKM-1500 | KWBKM-2000 | KWBKM-3000 | ||
| Work Pieces Diameter (Min.Max/MM) | 100-650 | 150-650 | 250-800 | 350-800 | ||
| Work pieces Lenght (MM) | 1000 | 1500 | 2000 | 3000 | ||
| Metarial Tichkness (MM) | 0,6-10 | 0,6-10 | 0,6-10 | 1-10 | ||
| Pressing Power (BAR) | 8 | 8 | 8 | 8 | ||
| Input Power | 380V-50 Hz | 380V-50 Hz | 380V-50 Hz | 380V-50 Hz | ||
| Welding Speed (MM/Dak) | 0-2000 | 0-2000 | 0-2000 | 0-2000 | ||
| free Speed (MM/Dak) | 3000 | 3000 | 3000 | 3000 | ||
| Dimension (MM) | 2100x2000x1200 | 2700x2100x1200 | 3250x2500x1200 | 4250x2500x1200 | ||
| Color | Red - Black | Red - Black | Red - Black | Red - Black | ||
| Welding Method | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw | ||
| Weight KG | 1200 | 1600 | 2350 | 3000 | ||
